Description
Care | Grab Rail Click-Lock Pull Down Grab Rail Polished Stainless Steel
| Material | #304 Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel – 32mmØ |
| Mounting Bracket & Brace |
4.5mm Formed #304 Stainless Steel |
| Finish | Polished Stainless Steel |

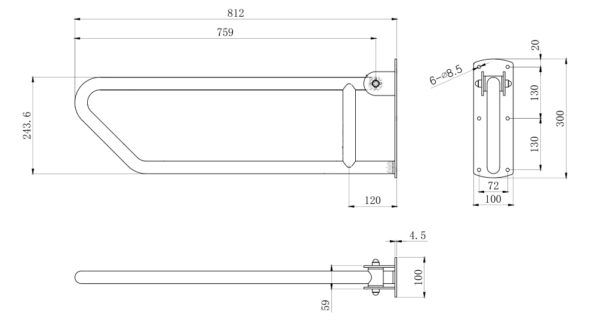

| Overall Dimensions | 812mmL x 300mmH |
| Grab Rail | 243.6mmH from outer edge to edge |
| Mounting Bracket | 100mmW x 300mmH x 30~50mmD x 4.5mmT |
| Mounting Holes | 6 off by 8.5mmØ |
| Features | Click-lock system to prevent rail sliding down Unit is Seamless Welded & Polished |
| Also Available | MLR55_SS: Satin Stainless Steel |
| Notes | * Unit stores in upright position
* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. * Compliant with the Force Requirements within AS1428.1: 2021, Section 14. |
