Description
Metlam | Eclipse Slimline Automatic Operation Hand Dryer in White
| Material | 1.2mm #304 Satin Stainless Steel |
| Finish | White Powder Coat Steel |
| Motor | 500W, 16,000-29,000 r.p.m, adjustable brush type, dual ball bearings |
| Features | Touch-free Patented high-flow dual air outlets |
| Warranty | 5-Year Warranty (3 Years Parts and Labour+ 2 Years Parts only) |
| Power Use | 220-240 Volts, 50Hz |

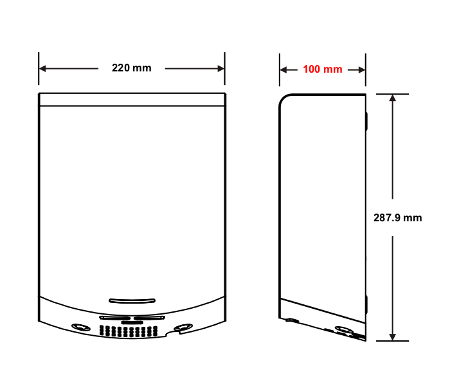

| Dimensions | 220mmW x 287.9mmH x 100mmD |
| Operating Sound Level | 72db (+-3)@1M db |
| Motor Speed (Max Settings) | 29,000 RPM |
| Motor Speed (Min Settings) | 16,000 RPM |
| Motor Speed Notes | 250-500W Brush Type, Dual Ball Bearings, 95° auto reset overload |
| Air Speed (Max Settings) | 115m/s ==257MPH |
| Air Speed (Min Settings) | 95m/s ==212MPH |
| Heater Element Power | 325-500 Watts, adjustable |
| Motor Cut-Off Time | 60-second power cut off, auto reset |
| Rated Power (Max Settings) | 1000 Watts |
| Rated Power (Min Settings) | 575 Watts |
| Rated Power Notes | Motor 250-500W, Heating Element 325-500W |
| Energy Per Day (Min Setting) | 2.4 Watt-hours (Wh) |
| Energy Per Day (Max Setting) | 4.17 Watt-hours (Wh) |
| Sensor Type | Infrared Automatic – 152mm +/- 20mm present blue LED indicates operation/range |
| Drying Time | Less than 15 seconds |
| Carbon Dioxide Emission | 305g Only |
| IP Rating | IP24 |
| DP Rating | IPX 1 |
| Heater Element | 325-500W |
| Heater | Auto resetting thermostat turns unit off at 85°C |
| Warm Air | Speed: 95m/s – 115m/s (Adjustable). Temp: Ambient +30° |
| Protection | 60-sec power cut off, auto reset |
| Timing | 2 sec delay turn off after the last read |
| Case Security | 2 SS theft-resistant hex drive screws (hex key supplied) |
| Net Weight | 4.2kg |
| Also Available | ML_ECLIPSE_DESIGNER:Â Designer Black |
| ML_ECLIPSE05_SS:Â Stainless Steel | |
| Note | * The unit can be hard-wired by an electrician or used with the cord and plug provided
* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. * Hardwire – 80mm from the connection point to the wall. * Cord and plug – 80mm from the connection point to the bottom of the unit. |
